Study (A-I)

Status: Executed

Country: Lebanon

Location within country: South Lebanon

Client: State of Qatar, Qatar Olympic Committee

Duration: 1 Year

Staff: 13

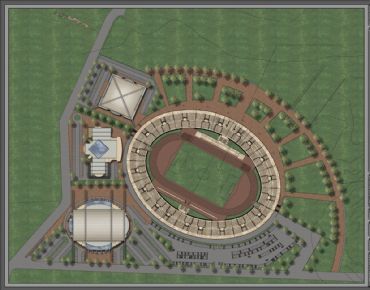

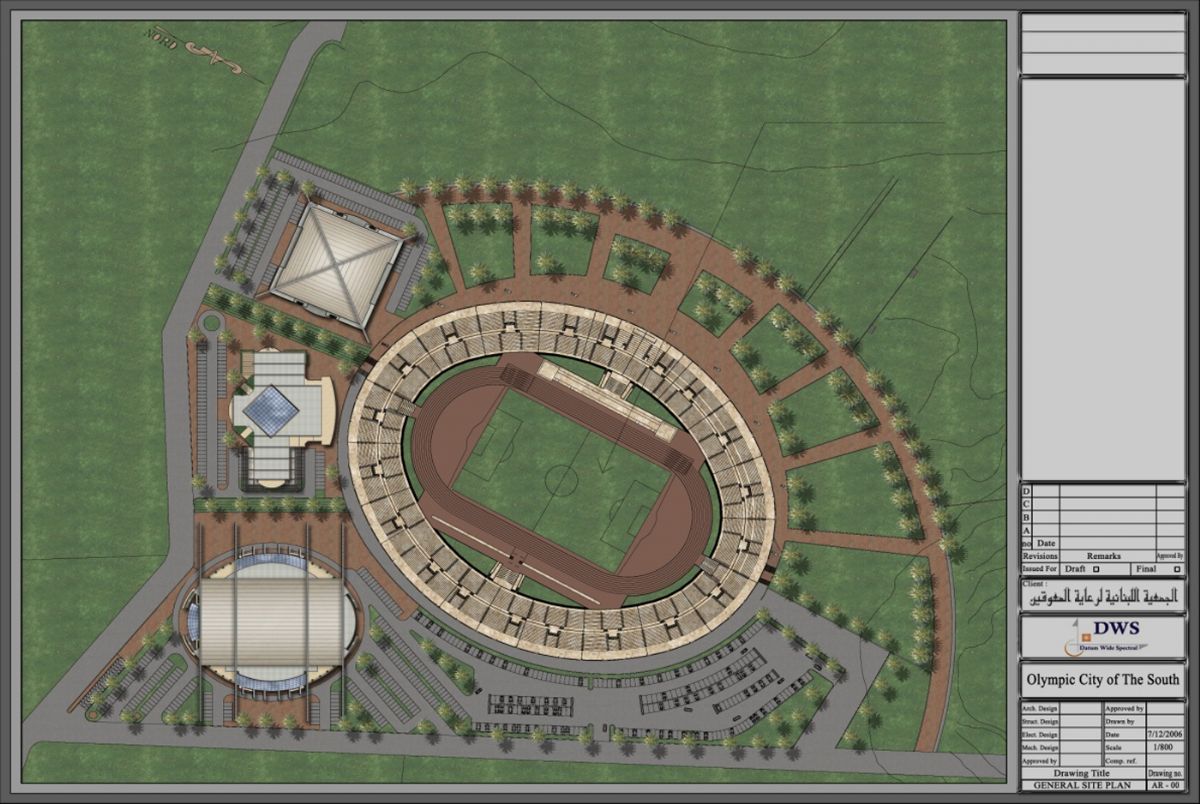

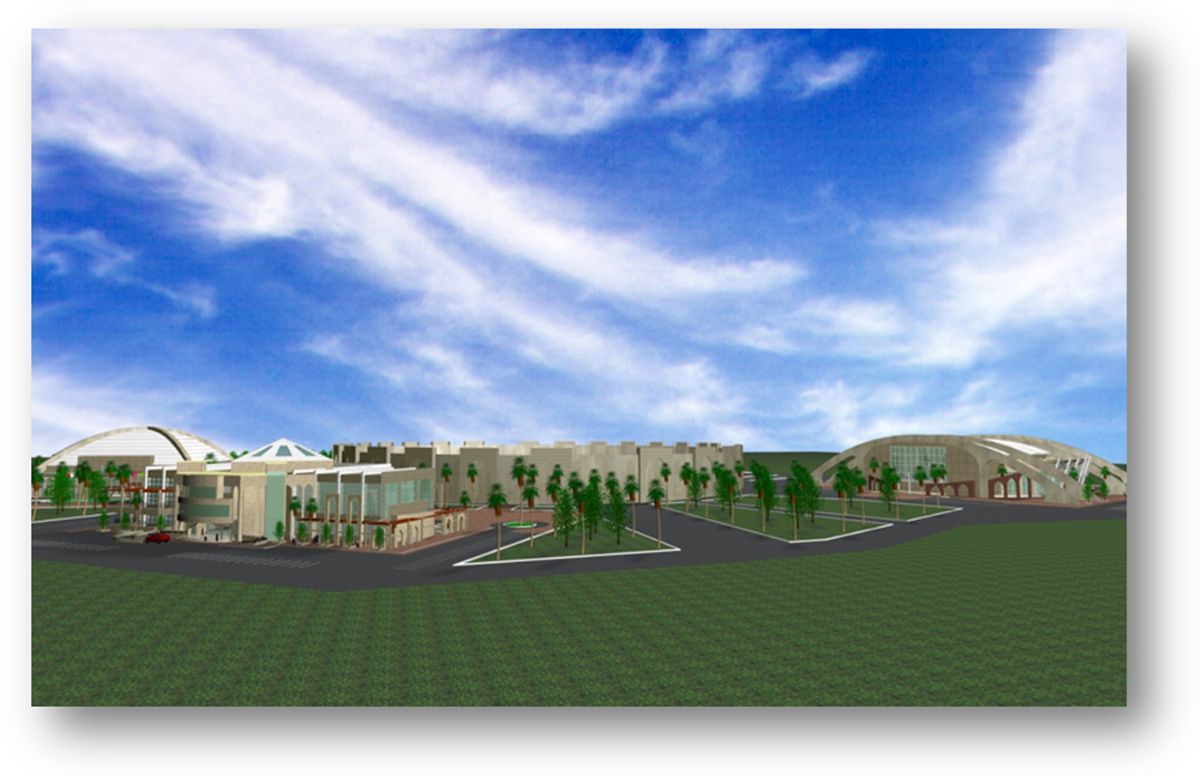

The project consists of three buildings in addition to generator , transformer & BMS control room,  (Olympic Swimming Stadium, Olympic Basketball Court & Sport Social Club in addition to generator & transformer room of total area 41,334 m2.

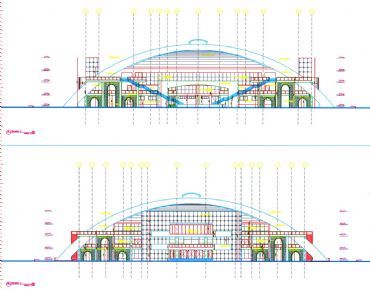

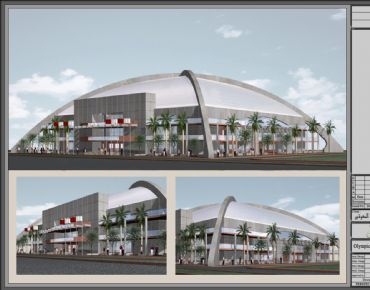

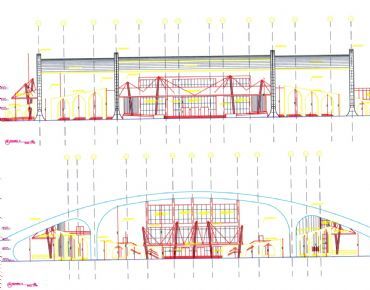

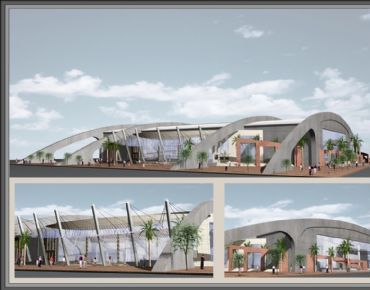

1-Olympic Swimming Stadium - Building consists of:

- Basement floor of area 3188m2 includes:

• Water treatment and filtration rooms of area 315m2
• Water tanks of area 320m2
• Electromechanical room of area 673m2
• Storage & services of area 415m2
• VIP-parking (capacity 26 cars) of area 1465

- Ground floor of area 6001m2 includes:

• Main Entrance of area 442m2
• Players and jury entrance of area 27m2
• Administration (manager , secretary offices , meeting rooms & services) of area 365m2
• Control & ticketing rooms of area 50m2
• Olympic swimming pool & swimming deck of area 1947m2
• VIP-parking of area210m2
• Press & jury rooms of area 450m2
• Gymnasium (changing, showers, lockers ,sauna, Jacuzzi steam, calling room) of area 560m2
• First aid and check rooms of area 93m2
• Services & ramps for handicap of area 424m2

- Mezzanine floor of area 812m2 includes:

• Cafeteria of area 225m2
• Mechanical rooms of area 80m2
• Services of area192m2
• Gymnasium & Aerobic of area 203m2
• Stairs & terrace of area 112m2

- First floor of area 2650m2 includes:

• Stadium for 2500persons of area1200m2
• VIP-stadium for 100 persons of area 85m2
• VIP-lounge of area 340m2
• Stadiums for handicaps for 200persons of area 307m2
• CCTV& control rooms of area 135m2
• Storage & mechanical rooms of area 575m2

- Second floor for services of area 330m2

- Roof floor for services of area 468m2

- Top of roof for services of area 4045m2

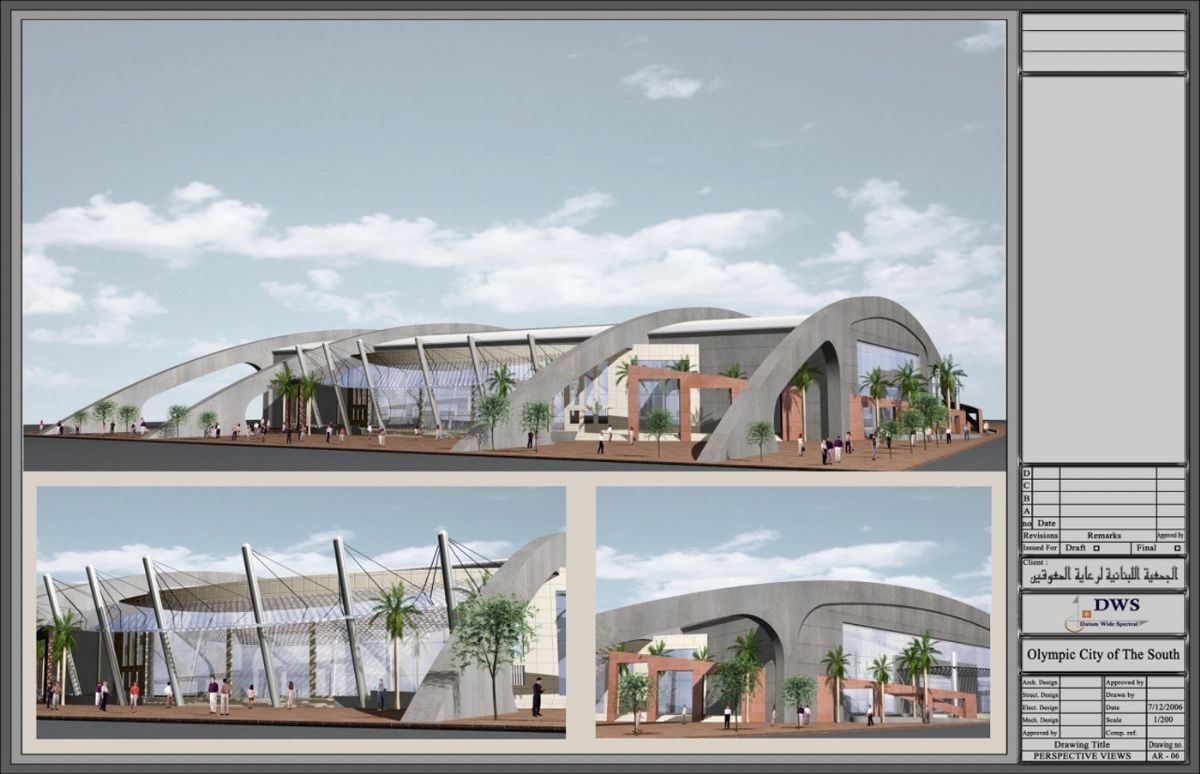

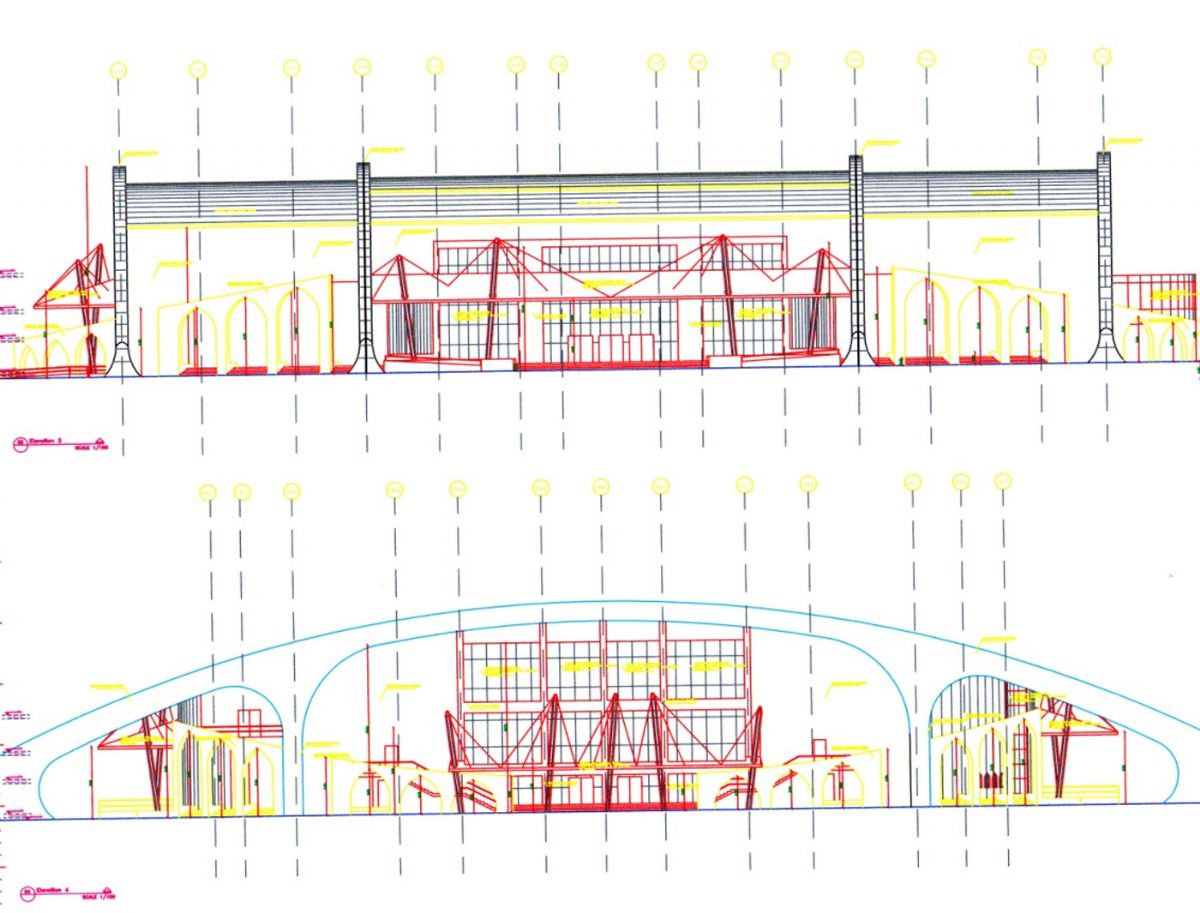

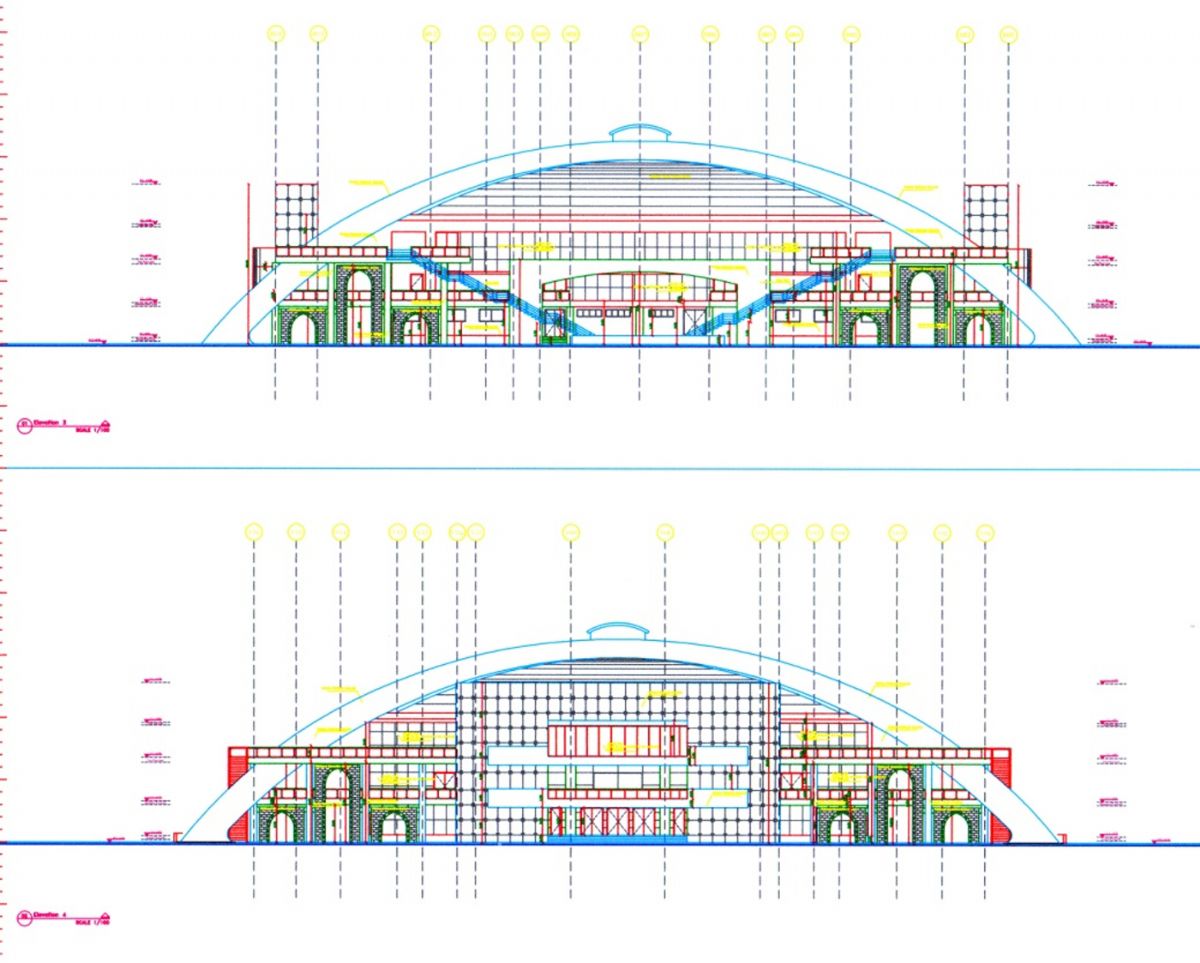

2- Olympic Basketball Building consists of:
- Basement floor of area 1224m2 includes:

• Electromechanical rooms of area 150m2
• Water tanks and storage rooms of area 350m2
• VIP-parking (capacity 12 cars)of area 724m2

- Ground floor of area 3669m2 includes:

• Main entrance of area 300m2
• Entrance for VIP of area 175m2
• Players entrance in addition to jury, changing, showers rooms of area 510m2
• Administration(manager, secretary offices ,meeting rooms and services of area 180m2
• Control & Ticketing rooms of area 25m2
• First aid & check rooms of area 23m2
• Play ground of area 680m2
• Services & storage of area 660m2
• Ramps for handicaps & Entrance, balconies of area 986m2
• Mezzanine floor of area 187m2includes:
  • VIP – lounges of area 280m2
  • Terrace, cafeteria & services of area 1590m2
  • First floor of area 2443m2 includes:
  • Stadium (for 1100m2) of area 840m2
  • VIP- Stadiums (for 100 persons ) of area 85m2
  • Stadiums for handicaps (for 200 persons) of area 665m2
  • CCTV & Control rooms of area120m2
  • Services, terrace stairs 7 ramps of area 120m2
  • Roof floor for services of area 176m2
  • Top of roof for services of area 3600m2

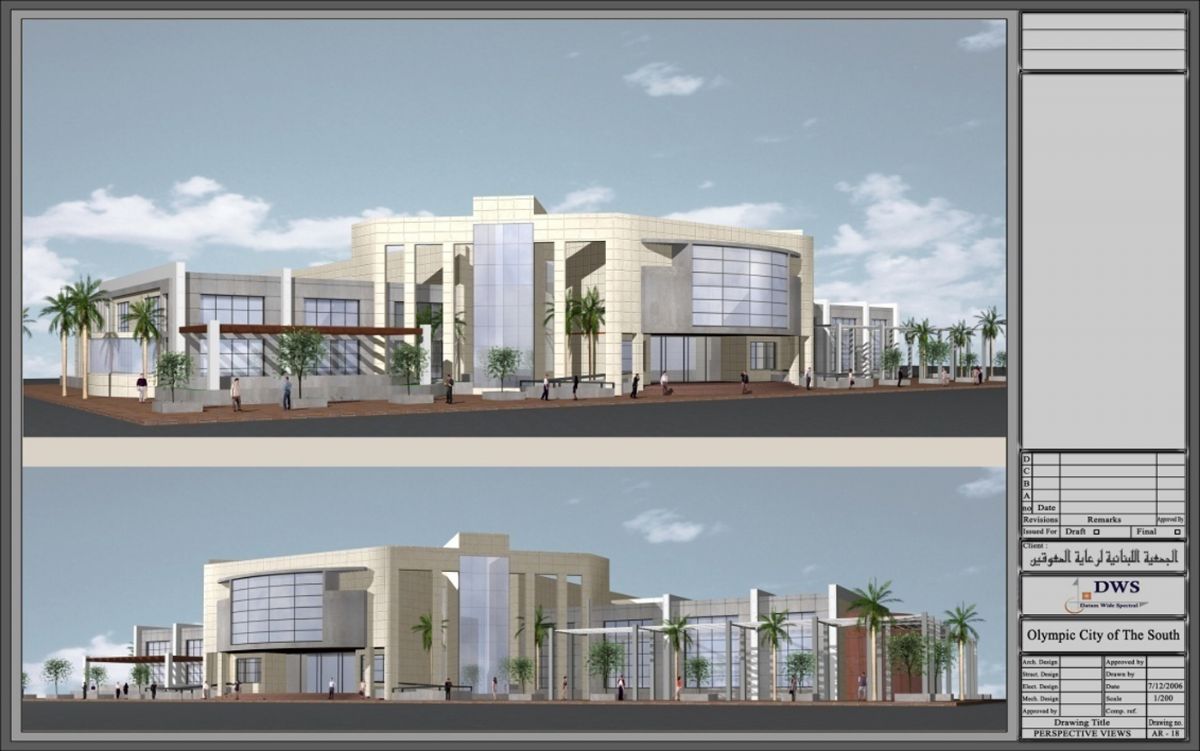

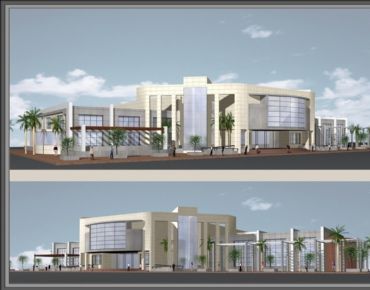

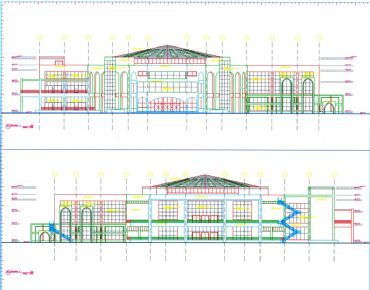

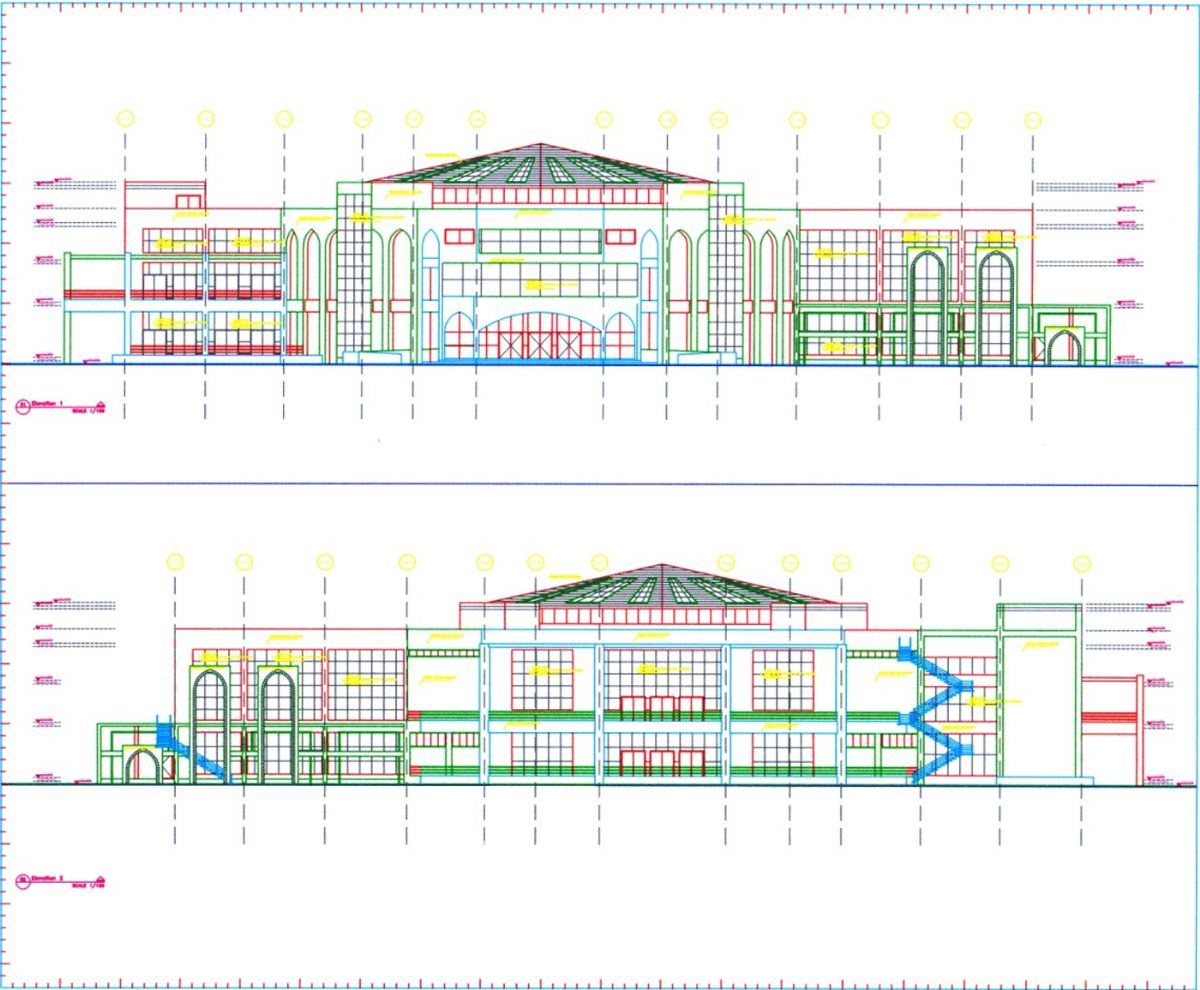

3- Sport Social Club - building consists of :
- Second basement floor of area 863m2 includes:

• Water tanks , filtration & mechanical rooms

- First basement floor of area 2243m2 includes:

• Swimming pool, Jacuzzi, steam, sauna, changing rooms, showers of area 1585m2
• Physiotherapy rooms of area 15m2
• VIP-parking (for 10persons) of area 513m2
• Entrance for parking of area 130m2
• Ground floor of area 3072m2 includes:
• Entrance hall, info deck, stairs & doors ,landscaping of area 865m2
• Main VIP-lounge (for 250persons) services 7 terrace of area 692m2
• Hall for conference (for 500m2) & services of area 600m2

- Mezzanine floor of area 328m2 includes:

• Administration, secretary , accounting & meeting of area 155m2
• Services of area 173m2

- First of area 3090m2 includes:

• Gymnasium (for 100 persons) ,services , showers & changing rooms of area 575m2
• Restaurant ( for400 persons ) ,services & storage of area 600m2
• Library (for 60 persons) & storage of area 250m2
• Mental games room (for 80 persons ) of area 250m2
• Multi games room (billiard, pingpong, internet…..)of area 200m2
• Terrace, stairs, elevators of area 1215m2)
• Roof floor FOR services of area 51m2
• Top of roof for services of area 450m2
• Ground pergola of area 531m2
  • Generator & transformer room –building of area 230m2.
